Inverted Roofs For Concrete Slabs
Inverted/Wet Insulated Concrete Roof Application. Important – this is the most basic inverted system and does not include the bidm cloth or drainage system.
As noted, we can customize the complete system to suit the architects and clients requirements as needed.

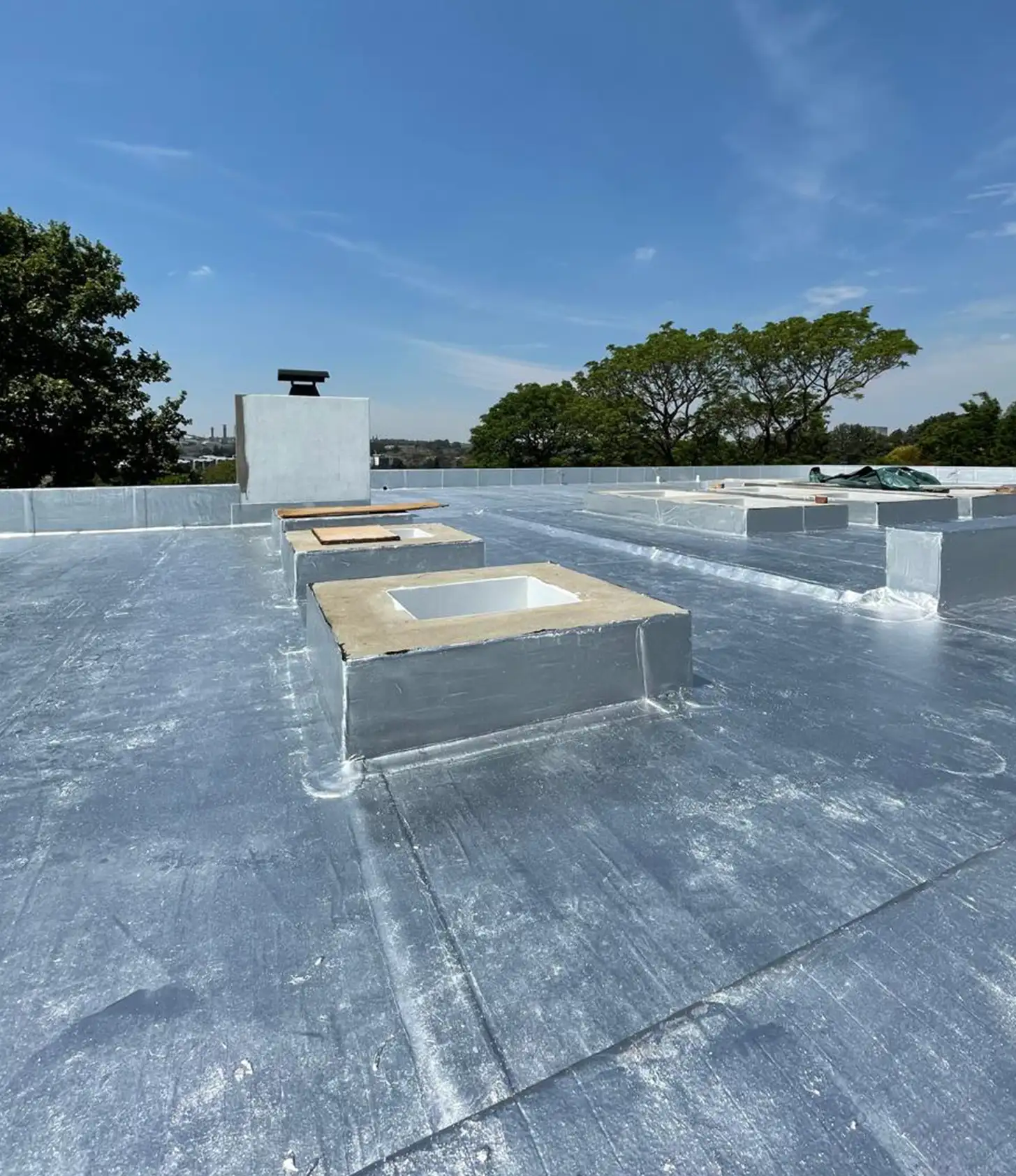

Once the torchon is completed with the protective aluminium coating, this system is installed.
Advantages – it protects the waterproofing layer (the buried system does not require 3-yearly service intervals), insulates the building structure very well and is extremely pleasing to the eye.
Process Concrete slab applications
Any and all concrete slabs. As noted we do not do the actual slab and building up of the concrete slab that would be the builders/developers scope of works.
1
Step 1
- Evaluate the existing waterproofing: If needed, we strip and remove existing waterproofing and prepare area for new waterproofing.
- Supply and fit new waterproofing as per specification.
2
Step 2

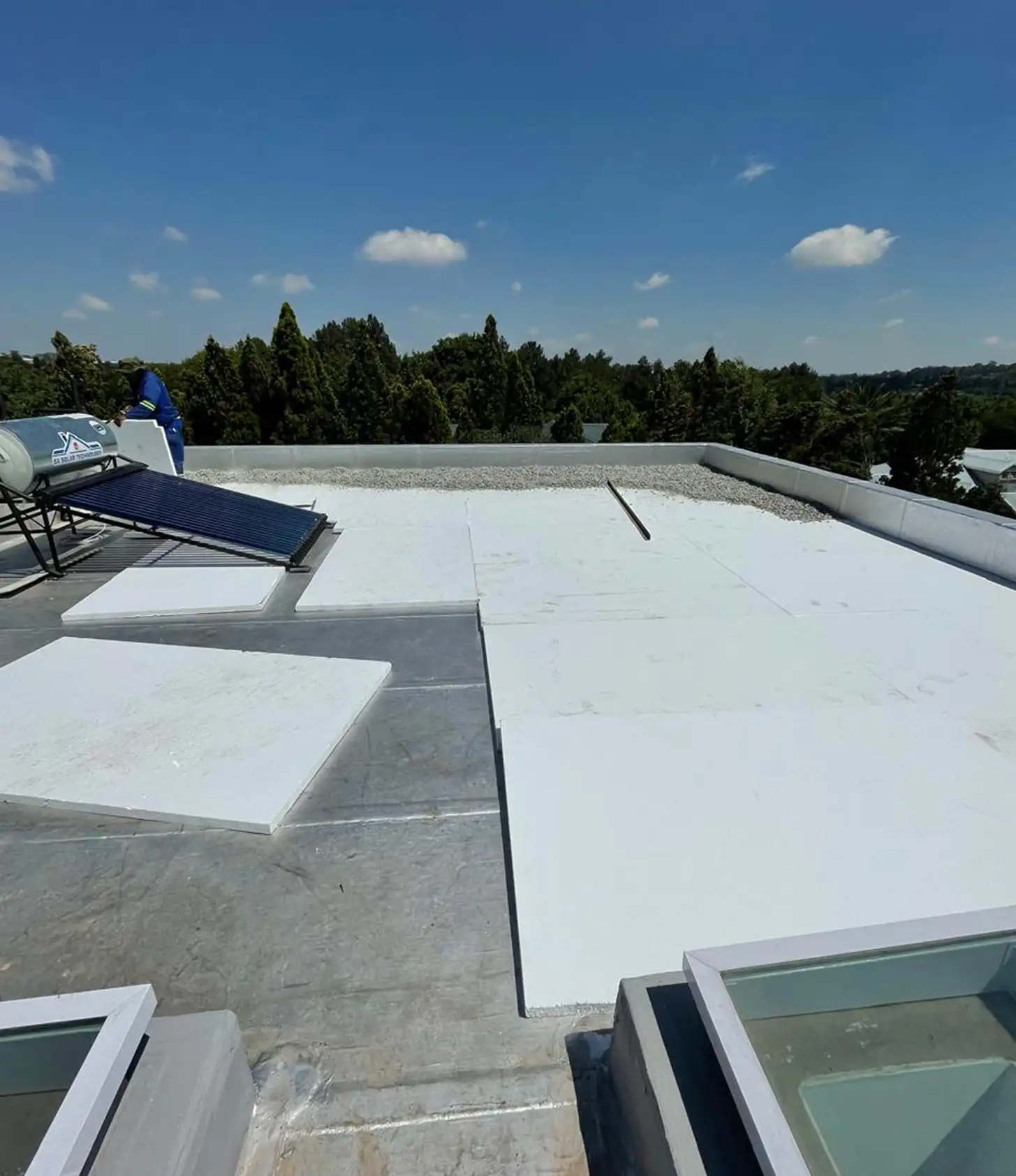

- 1 x layer 40mm 32DV Multidex insulation panel, the specifications are available on request, we have found this is best suited for our climate and weather conditions. As per usual we are able to customize the properties of the insulation panels based on the clients and architects needs and specifications.
3
Step 3

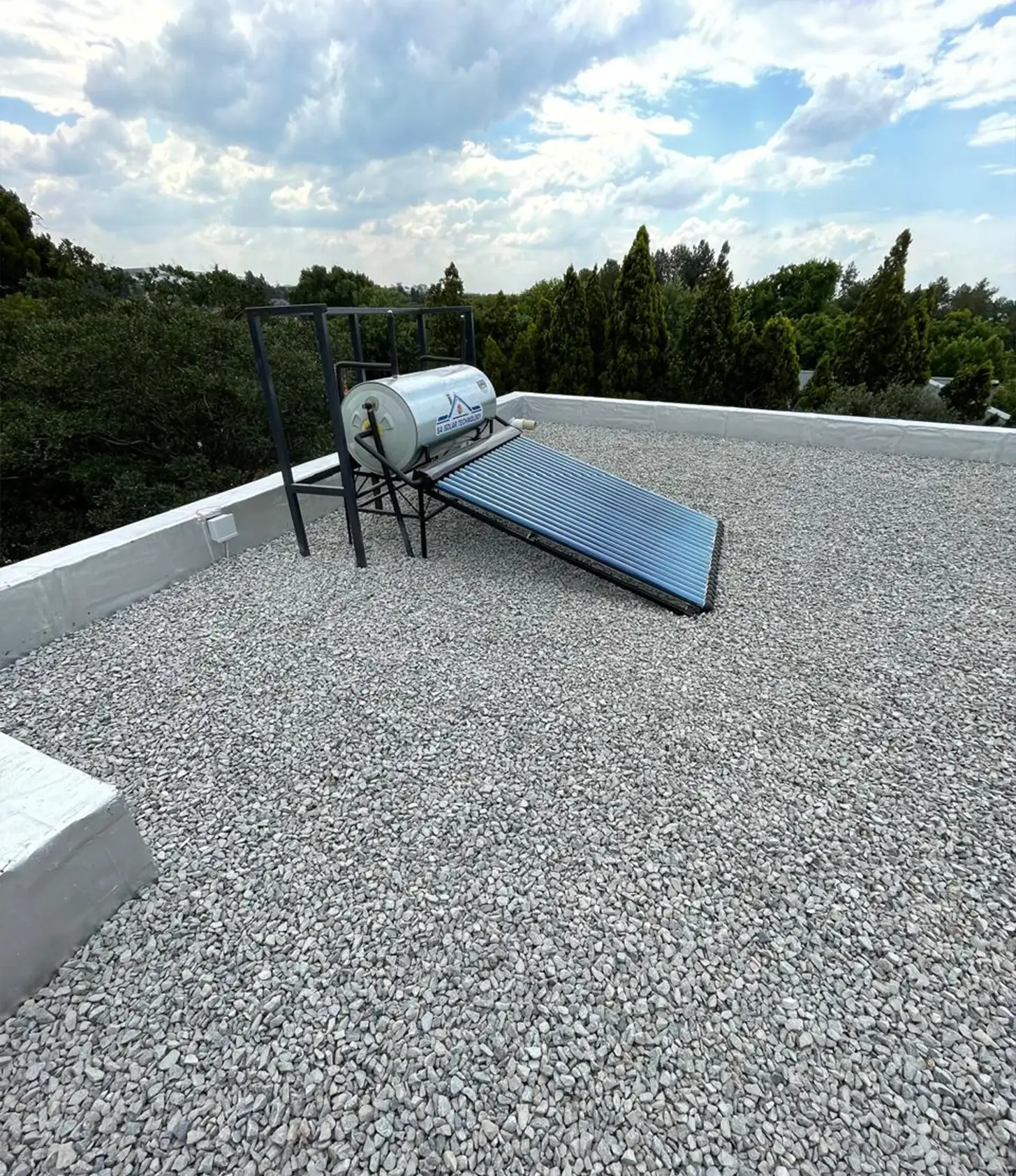

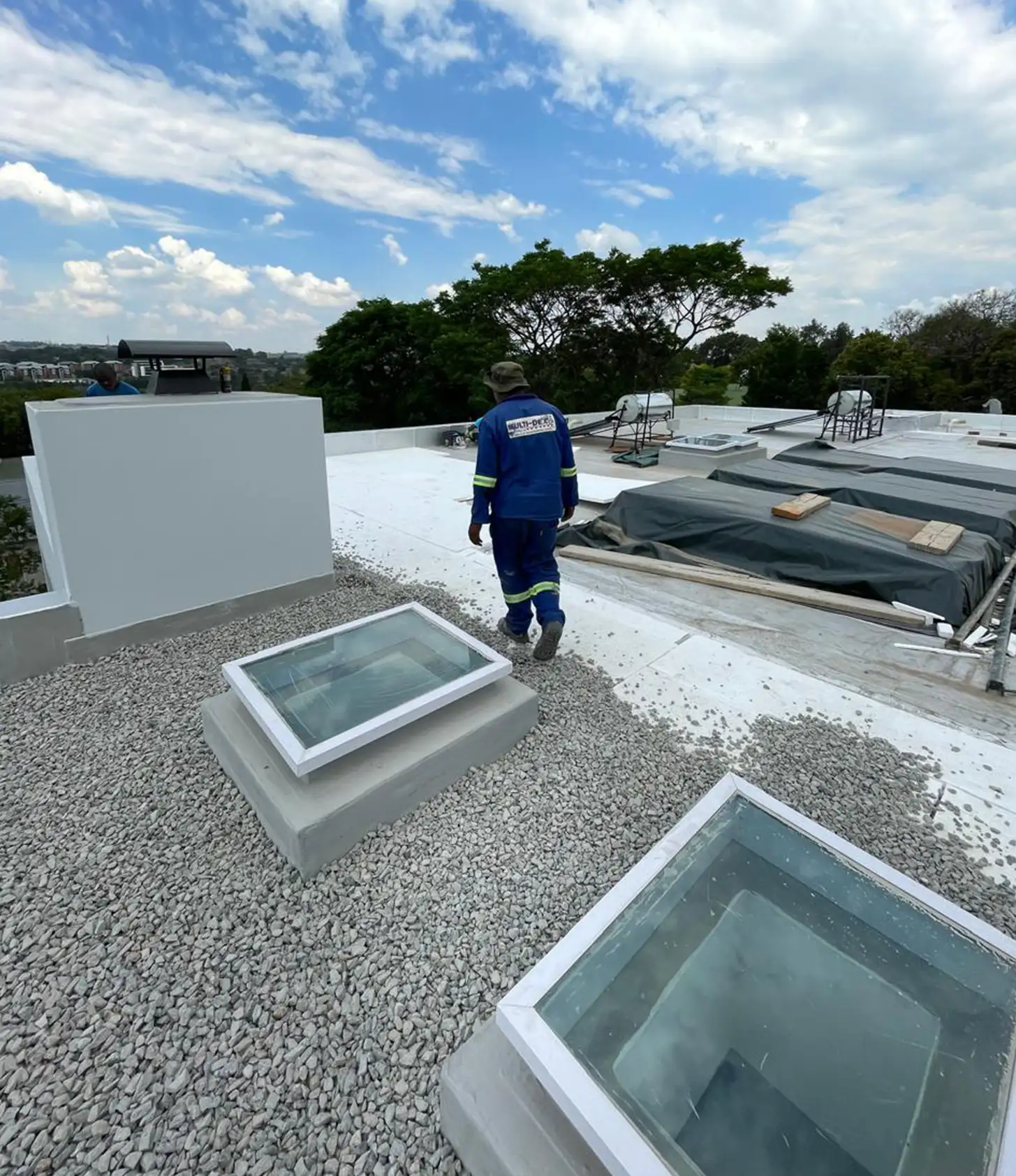

- 1 x layer 19mm crushed stone at an average depth of 50mm, the stone is the ballast that keeps the panels in place in the most severe of storms
4
Step 4
- All drainage points/full bores/side outlets to receive the Multidex stone/leaf guard to keep stones and debris out of the existing drainage system
